Visitor Entry Access Control Turnstiles , Handicap Pedestrain Luxury Security Swing Gate

Visitor Entry Access Control Turnstiles , Handicap Pedestrain Luxury Security Swing Gate

fastlane turnstiles

access control barriers

Place of Origin:

China

Marka adı:

RONA

Sertifika:

CE / ISO9001

Model Number:

RNCF H8008-5- non standard

Bizimle İletişim
Bir İndirim İste
Ürün Ayrıntıları
Malzemeleri:
304 Paslanmaz çelik
Bitiş:
Fırçalanmış yüzey / parlatma yüzeyi
Boyut:
Φ141mm * H1005mm
Güç gerilim:
AC220V ±% 10, 50Hz ±% 10
Geçiş hızı:
40 kişi/dk
geçiş genişliği:
600 mm
Ödeme ve Nakliye Şartları
Minimum Order Quantity
1 Lane
Fiyat
negotiation
Packaging Details
carton and wooden packing
Teslim süresi
7-15 iş günü
Payment Terms
T/T,
Yetenek temini
aylık 2000 adet
Ürün Tanımı

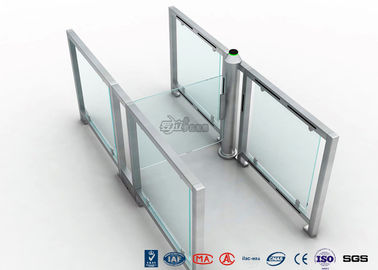

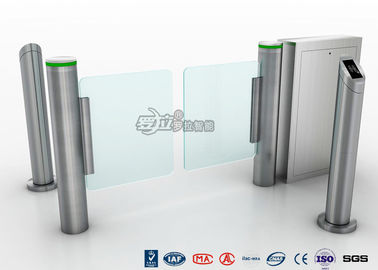

Visitor Entry Access Control Turnstiles , Handicap Pedestrain Luxury Security Swing Gate







PRODUCT DESCRIPTIONS of luxury speed gates:



luxury speed gates(RONA) Appearance (304) stainless steel plate stamping molding,nice shape,rust-proof and durable.Besides foreign standard electrical interface,bar code,ID card,IC card reader can be integrated in the equipment.

They are used most commonly in, airports, museums and office lobbies, mansion



STANDARD FEATURES & FUNCTIONS:

1. Fault self-test and alarm functions,convenient user maintenance and using.

2. Via the control board Built in a small dish,Programmable devices running status

3. Anti-Pinch mechanical structure,anti-bumps function, when the swing arm reset process meet resistance, within a limited time automatically stops the motor, the default delay after the reset again (until reset), and the force is very small (≤2Kg )

4. Break into protection function, when the gate signal is not received, the arm automatically locked

5. Swing arm synchronization can be adjustable(for the double swing condition)

6. With automatic reset function, after the gate opening, within a specified period of time not pass,the system will automatically cancel the user's access Permissions

7. Adjustable normally open or normally closed, in order to meet the requirements of different venues

8. Relative with a variety of reader device attached,working when receive relay switch signal

9. Unidirectional or bidirectional

10. Remote control and management by the management computer

11. Delay automatic reset, after 3 seconds to turn on automatic reset standard

12. Power-off arm Automatic open,turn on automatically closed, can meet fire safety requirements

13. Sound (light) alarm function, including illegal intrusion alarm, (reverse into closing), etc.

14. Counting function (optional)

15. Pinch function (bridge type four pairs of infrared optional)

16. Accurate logic judgment and infrared reset function (4 or 6 pairs of infrared)

17. Voice output, user-friendly prompt the correct pass (optional)



Visitor Entry Access Control Turnstiles , Handicap Pedestrain Luxury Security Swing Gate 0



SPECIFICATIONS:

Framework

304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)

Thickness of ply

1.7mm

Finish

brushed surface, polishing surface

Shell's size (L*W*H)

Φ141mm*H1005mm (default)

Swing arm material

Tempered glass or Acrylic (optional)

Stretching out swing length

260mm~600mm

The inductive card reader dimension

equipped with the standard mounting brackets or tailor.

Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

DC36 servo motor

Main-board voltage

12V DC

In-built Infrared

6 pairs/passageway

Passing speed in normally open mode

50 persons/min

Passing speed in normally closed mode

40 persons/min

Passage Width

600mm

Swing arm transmission angle

180°

Swinging direction

unidirectional or bi-directional

Opening / closing time

0.1 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

1 seconds

Mean time to failure

min. 5 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet



APPLICATIONS:

Typical areas of application are: Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums and Retail outlets etc.



Visitor Entry Access Control Turnstiles , Handicap Pedestrain Luxury Security Swing Gate 1
