Menşe yeri: | China |
Marka adı: | RONA |
Sertifika: | CE / ISO9001 |
Model numarası: | Customized |
Min sipariş miktarı: | 1 Lane |
---|---|
Fiyat: | negotiation |
Ambalaj bilgileri: | carton and wooden packing |
Teslim süresi: | 7-15 iş günü |
Ödeme koşulları: | T/T, |
Yetenek temini: | aylık 2000 adet |
Malzemeler:: | 304 # paslanmaz çelik | Geçiş genişliği: | 550mm |
---|---|---|---|
Güç gerilimi: | AC220V ±% 10, 50Hz ±% 10 | İletişim portu:: | RS232 / RS485 |
Giriş bağlantı noktası:: | relay dry contact signal; röle kuru kontak sinyali; +12V level signal and pulse wid | Çalışma ortamı:: | İç / Dış Mekan (yağmur-çadır örtüsü ile) |
Bağıl nem: | % 95'ten az yoğunlaşmamış | Başarısızlık için ortalama zaman: | 500000 |
Vurgulamak: | Güvenlik turnike,bariyer turnike |

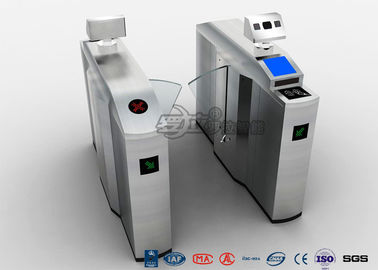

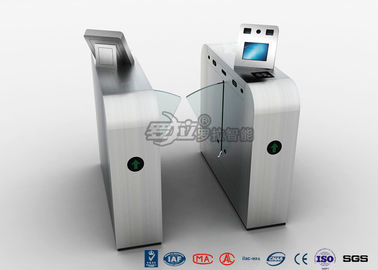

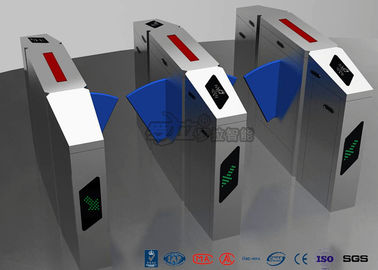

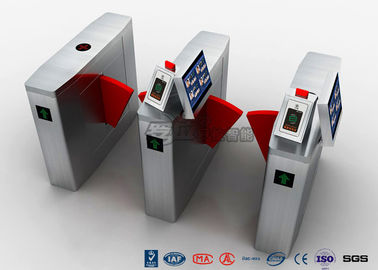

Retractable Optical Turnstile Security Systems Electric For Airports Access
PRODUCT DESCRIPTIONS:
The retractable flap turnstile controls pedestrian access between public and secure areas. The turnstile lane uses an array of optical sensors to determine the number and direction of persons passing through the lane. The turnstile uses a retractable flap to block the pedestrian’s path.
The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.
SPECIFICATIONS:
Model |
Customized |
Customized |
Classifications |
Single-core mechanism |
Dual-core mechanism |
Framework |
304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional) |
|
Thickness of ply |
1.7mm |
|
Finish |
brushed surface, polishing surface or anti-fingerprint surface (optional); |
|
Size (L*W*H) |
Customized |
|
Material of flap |
different color Acrylic flap available or Red Soft flapper optional |
|
Stretching-out flap length |
230~235mm |
|
The inductive card reader dimension |
equipped with the standard mounting brackets or tailor. |
|
Machine center |
Germany technological motor |
|
Power voltage |
AC220V±10%, 50Hz±10% |
|
Driver motor |
DC Stepper motor |
|
Main-board voltage |
12V DC |
|
In-built Infrared |
7 pairs/lane |
|
Passing speed |
30 persons/min |
|
Passage Width |
550mm |
|
Opening / closing time |
0.6 seconds |
|
The time required to running state after power on |
3 seconds |
|
Automatic reset time after the failure |
10 seconds |
|
Mean time to failure |
min. 5 000 000 |
|
Operation temperature |
-10℃ ~ +70℃ |
|
Relative humidity |
less than 95% not condensed |
|
Working Environment |
Indoor/Outdoor (with rain-tent cover) |
|
Input port |
relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
|
Communications port |
RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet |
|
Warranty |
12 months |
APPLICATIONS:
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.
KEY WORDS:
Flap Barrier, half height turnstile, waist height turnstile, falp turnstile, turnstile, turnstiles, access control turnstile, access control barrier, sensor gate, sensor barrier, panel barrier, wing barrier, wing gate, wing turnstile, speed gate, access control system, perimeter protection barrier.
PROJECTS:
WORKSHOP:
EXHIBITION:
CONTACT US:
Shenzhen Rona Intelligent Technology Co., Ltd is a Chinese manufacturing firm located in Shenzhen. When you are ready to find out how we can service your needs, use the information listed here to reach our sales and service office. Monday to Friday: 8:30am - 6:00pm (UTC/GMT +8). We look forward to hearing from you.
Head office: A603, 6F, Yousong Technology Building, E Ring 1st Rd, Loghua Town, Bao'an, Shenzhen, China, 518109
Factory: 3F&4F, Building C, Longlian Industrial Zone, Zhonghua Rd, Longhuan Town, Bao'an, Shenzhen, China, 518109
Contact Person: Ms. Sophia Wey
Cel: +86-15986833719
Email: export@szrona.cn
Skype: rona.export
Tel: +86-755-88853586 ext 8039
Fax: +86-755-88853586 ext 8002
